Aqara Smart Wall Switch E1 (Wired Version)

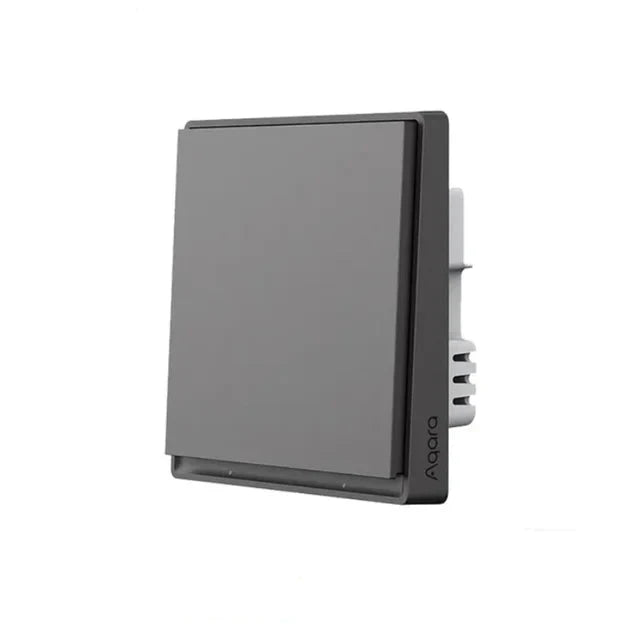

Single Rocker (1 Key)

• Model: QBKG38LM
• Dimensions: 86 x 86 x 30.15mm
• Wireless Connectivity: Zigbee 3.0
• Rated Voltage: 220V~, 50Hz
• Rated Power: Max 1100W, Min 3W
• Operating Temperature: 0°C~40°C
• Operating Humidity: 5% to 95% RH (no condensation)

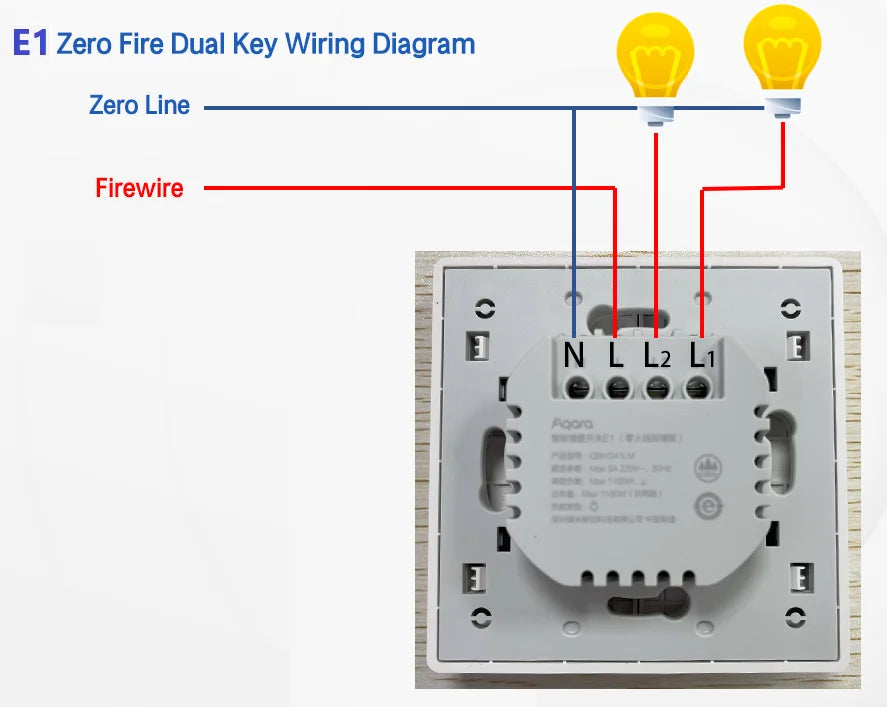

Double Rocker (2 Keys)

• Model: QBKG39LM
• Dimensions: 86 x 86 x 30.15mm
• Wireless Connectivity: Zigbee 3.0
• Rated Voltage: 220V~, 50Hz
• Rated Power: Max 1100W, Min 3W
• Operating Temperature: 0°C~40°C
• Operating Humidity: 5% to 95% RH (no condensation)

Features:

• Can be wired into your existing home electrical system.
• Controls any bulb through the wire.
• Requires a Zigbee 3.0 gateway hub for smart remote control functions.
• Supports APPs: Mi Home, Aqara Home, and HomeKit.

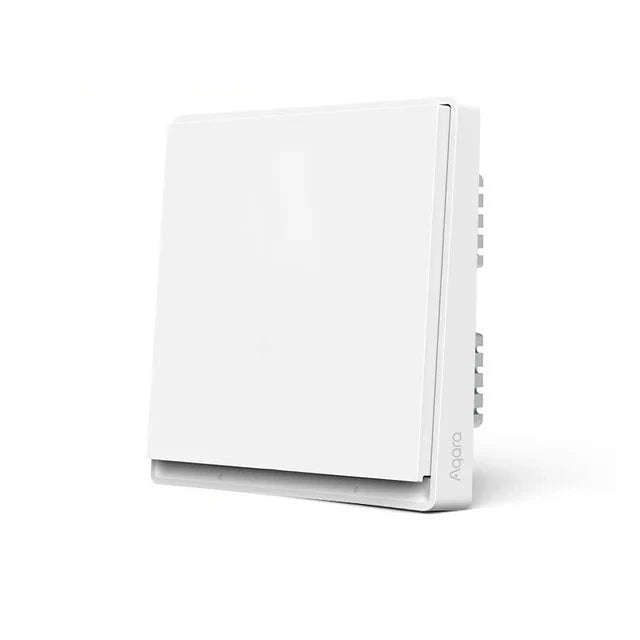

Aqara Smart Wall Switch E1 (No Neutral) Wireless Version

Single Rocker (1 Key)

• Model: WXKG16LM
• Dimensions: 86 x 86 x 30.15mm
• Wireless Connectivity: Zigbee 3.0
• Built-in CR2032 battery
• Compatible with Xiaomi Mi Home, Aqara Home, and HomeKit apps.
• No neutral wire required.

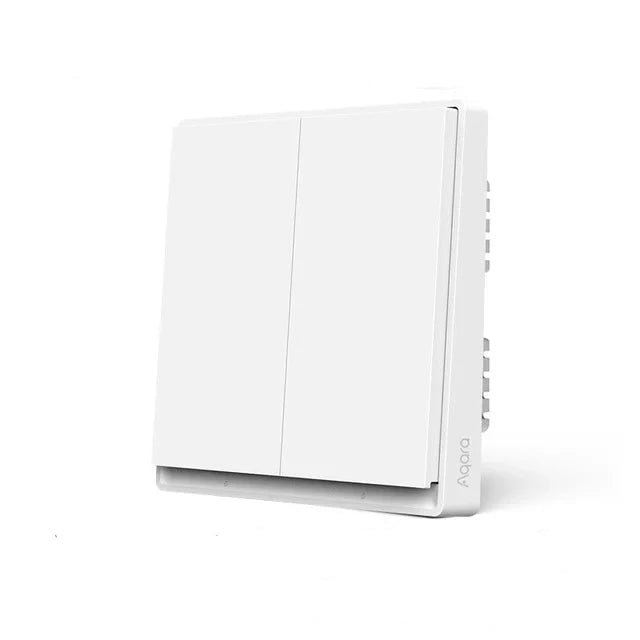

Double Rocker (2 Keys)

• Model: WXKG17LM
• Dimensions: 86 x 86 x 30.15mm
• Wireless Connectivity: Zigbee 3.0
• Built-in CR2032 battery
• Compatible with Xiaomi Mi Home, Aqara Home, and HomeKit apps.
• No neutral wire required.

Features:

• Portable, allowing control from anywhere.
• Wireless connection via Zigbee 3.0.
• Suitable for places without a neutral wire.

Notes:

• The Aqara Smart Wall Switches and wireless keys are part of the Xiaomi Ecological Chain and can be controlled through the respective apps after being configured with a compatible Zigbee 3.0 gateway hub.
• If you switch platforms (e.g., from Mi Home to HomeKit), it may require restoring your gateway to factory settings, which will reset the network, automation, and sub-devices connections.
• The Aqara Smart Wall Switches with neutral are designed for direct wiring into your home's electrical system and offer a wider range of power ratings and voltage support compared to their no-neutral counterparts.

Compatible Zigbee 3.0 Gateway Hubs:

• Xiaomi Gateway 3
• Aqara HUB M1S
• Aqara Smart Hub M2
• Any other Zigbee 3.0 compatible gateway hub

In The Box:

• 1x Aqara Smart Wall Switch E1 (or Wireless Version as applicable)
• 1x Instruction Manual
